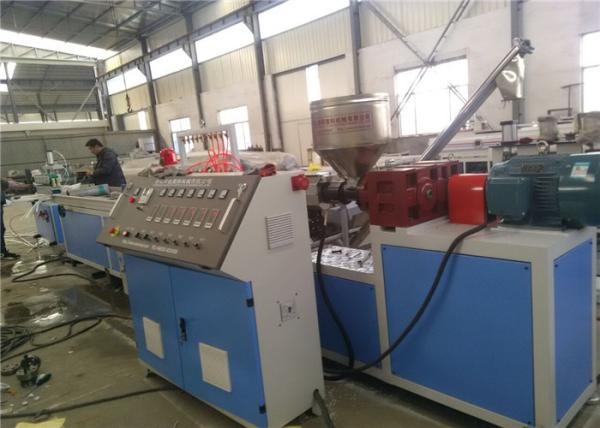

PVC PP PE Plastic and Wood Foamed Profile and Plate Extrusion Line
Quick detail:
1. PVC profile extrusion machine can produce all kinds of profile, for example, window, door and door frame, pallet, cladding of outdoor wall, faciliry of ourside park, floor etc. Output profile is Wood Plastic Composite(WPC) or Plastic UPVC.
2. Materials: PVC/PP/PE + Wood Powder or PVC, PE, PP.
3.Main Structure:
1.SRL-Z200/500 plastic mixer unit for mixing all the fomula material
2.SJSZ-51/105 conical twin screw extruder
3.co-extruder(make the soft PVC or rubber on the both side of the profile)
4.main mould on main extruder and co-extruder
5.Vacuum calibrator table and a form mould(the most important part)
6.Ink printer(to print grains or lines on the surface of the skirting board)
7.Final forming mould(with hot air gun)
8.Haul off machine
9.cutter
10.Stacker
Description:
1. Conical twin-screw extruder suitable for processing PVC powder and WPC raw material. Changing the moulds to produce many kinds of different pvc profiles. Auxiliary machine: mixing unit, mould, vacuum calibration table, haul-off machine, cutter and stacker. Advantage: This line has special design and high efficiency. Add some special additives, the anti-aging, anti-environment, antistress,insulation characters can be greatly improved.
2. The SJZS/Max Output 400KG UPVC Wood And Plastic Profile Extrusion Making Machine /Production Line is widely used as window and door profile, as well as decorative material.With modern technology and optimized design, it has the property of high output capacity, long life and plastic evently.
3. This machine uses the special designed screw and barrel , die and extrusion process to produce plastic and wood products, the series of products are: One step thick plastic and wood plate extrusion machine. One step plastic and wood profile extrusion machine. One step plastic and wood decoration plate extrusion machine. Plastic and wood pwlletizing machine and different kinds of plastic and wood dies.
Applications:
1.field:outdoor,building,logistic,car,garden,home decoration,
2.product:plank floor,pavilion,chair,door,building template,tray,rail crosstie,fence,courtyard handrail,flower
pot.
3.decoration
4.green environment protection, waterproof, dampproof, anti-corrosion, rot-resistence, ametabolic and
good fire-retardant
5. Dimension(L*W*H):22m*2.5m*2.5m
6.main export place:north America,africa,Europe,southeast asia,south America,etc
7. Available in different colors and wood grain design
8.Material is 100% recycled.
9. Complete process:
Milling → Mixing → Extruding → Mold → Calibrating → Hauling off→ Cutting→
Embossing,polishing,sanding→ Final product
Specifications:
Model | SJSZ65/132,SJSZ80/156,SJSZ92/188 |
usage | extrusion outdoor decorative |
raw material | recycled PE/PP,wood powder, additive material,etc |
product size | maximum:400mm,or according to prdroduct’s drawing |
Extruder feature | Special designed extruder |
wood powder ( wood fiber) | high volume of addition up to 50~75 percent |
Plastic proceed | PP,PE,PVC,wood plastic composite |
Auxiliary machine | Emboss machine,sanding machine,polishing machine |
Product type | Dustbin, Sound insulation board
(wall),edging,blinds,bulkhead,curtain rod, |
Competitive Advantage:
1.good after-service
2.spare parts are free
3.guarantee:one year or according to customer’s requirement.
4.advanced technology and best quality
5.international certification standard.
6.our engineer help and teach customer to test the machine.
